Metal Ceilings

SAS 800

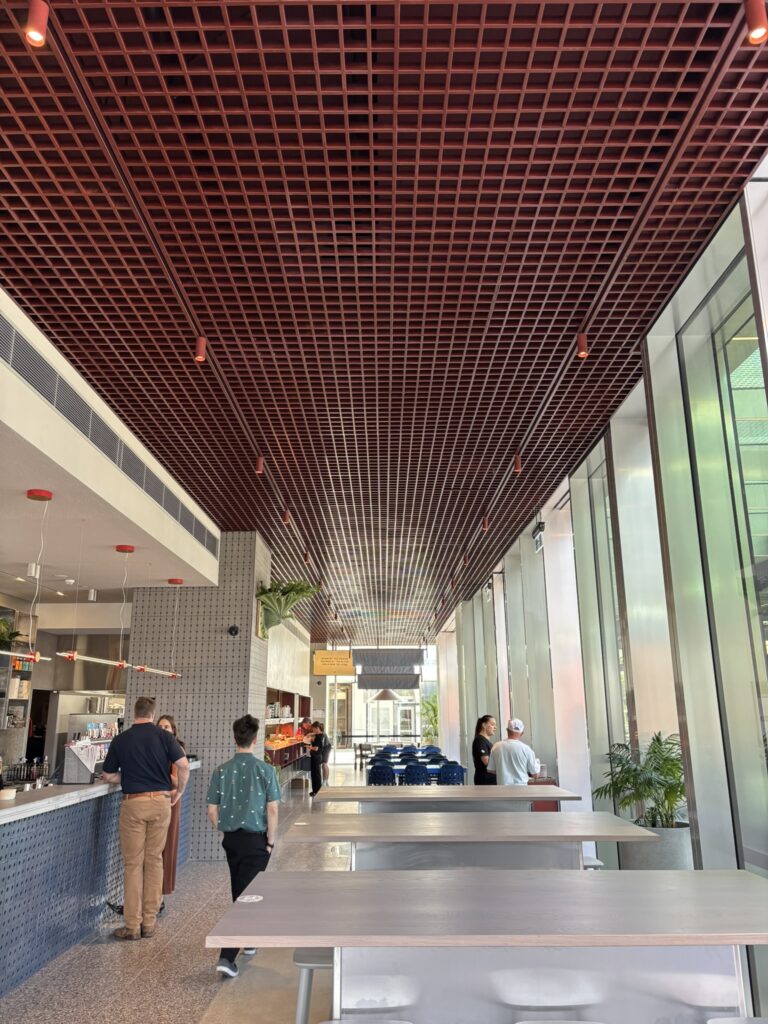

SAS 800 Trucell is a decorative open cell ceiling, for airflow and smoke extraction applications.

Product Applications

1 Application Type

The metal ceiling system comprises a series of open cell modules designed to lay onto a suspension grid. The ceiling tiles can integrate within other metal ceiling systems and plasterboard ceilings.

SAS International’s open cell ceiling systems are ideal for retail, transport or leisure applications with high human traffic flow. Rapid and safe smoke extraction is critical in such environments.

Trucell is a range of aluminium open cell ceiling panels designed to lay onto our 15mm Tee Grid. Access is gained by simply lifting the panels out of the grid.

Trucell blends in with the Tee Grid to give an unbroken, monolithic appearance.

  • Intended for smoke extraction and airflow management
  • Strong modular appearance
  • Simple access to the ceiling void
  • Lightweight, quick and easy to install
  • Minimum 25-year product life expectancy



Standard Module Sizes (mm)

Trucell panels are manufactured from lightweight, pre-coated aluminium folded into U-shape profiles. Each panel has a nominal cell wall thickness of 15mm to give a precise engineered ceiling appearance.Trucell Panels are available in 600 x 600mm modules with a nominal depth of 40mm.

Modules are available in six different cell sizes of (mm): 50×50

  • 75×75
  • 86×86
  • 100×100
  • 120×120
  • 150×150
  • 200×200

Material Specifications

  • Standard Finish

    Coating – Polyester powder coat

    Colour – RAL 9003 (White)

    Available in all RAL Colours

  • System Weight

    Based on a 1200 x 600mm panel size, the cell patterns below will have the corresponding approximate weights shown:

    200 x 200 cells – 0.40 Kg
    150 x 150 cells – 0.50 Kg
    120 x 120 cells – 0.67 Kg
    100 x 100 cells – 0.75 Kg
    86 x 86 cells – 0.89 Kg
    75 x 75 cells – 1.02 Kg
    60 x 60 cells – 1.30 Kg
    50 x 50 cells – 1.50 Kg

Downloads

  • SAS 800 Drawing PDF

    pdf

  • SAS 800 Project Portfolio

    pdf
