Project details

  • Services

    Passive Fire Protection

  • Industry

    Property Fire Maintenance (Installer)
    Progressive Materials (Specified & Supplied)

Project Overview

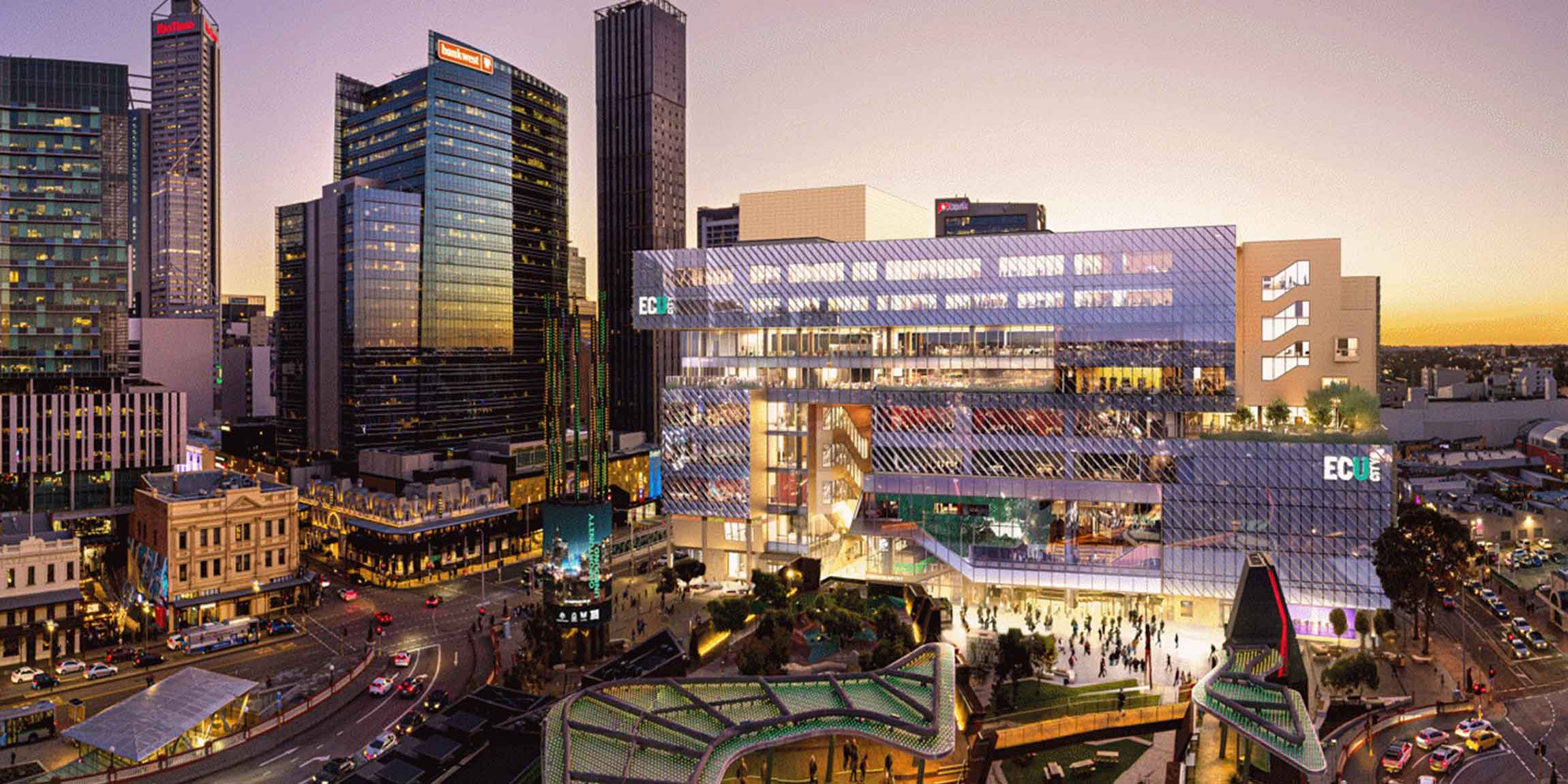

Progressive Materials were proud to play a role in delivering the passive fire protection systems that protect this iconic building. ECU City. With structural steel protection at the core of the fire strategy, the project demanded high-performance solutions across the full building envelope.

The project demanded a multi-layered approach to fire safety, with structural steel protection at the core of the fire strategy across the full building envelope. The primary product specified for structural steel protection was Cafco® 300, the most cost effective vermiculite based spray available. Cafco® 300 is a factory-blended, cementitious spray-applied material that provides reliable fire resistance in a single application, with excellent adhesion to steel substrates and low density for fast, efficient coverage at scale.

Where additional performance was required, Promatect® 250 boards were used to protect more complex or exposed steel elements. Promatect® 250 is a high-density, calcium silicate-based board offering robust fire resistance, impact resistance, and a clean finish, well suited to areas where aesthetics or mechanical durability are a consideration alongside fire performance.

Also deployed across the site were a range of Promat fire stopping products and fire collar systems, providing compliant solutions for service penetrations and construction joints throughout the building.   The high quality installation work was carried out by Property Fire Maintenance (PFM).

  • Year

    2025

  • Client

    ECU City

  • Location

    Perth City

The Challenges

The ECU City development involved a substantial volume of exposed structural steel requiring consistent, code compliant fire resistance ratings across the full building. Achieving even coverage at this scale, while maintaining programme, required products with high application efficiency across varied steel profiles and configurations.

Not all steel elements could be treated the same way. Some areas called for a spray-applied solution for speed and economy, while others (due to exposure, complexity, or finish requirements) demanded a board-based system capable of withstanding greater mechanical demands.

A further challenge common to large-scale developments is that passive fire protection is largely invisible once a building is finished. This makes it critical that every element is installed to specification and verified before being concealed, requiring close collaboration between the installation team, specifiers, and certifiers throughout the build.

The Solutions

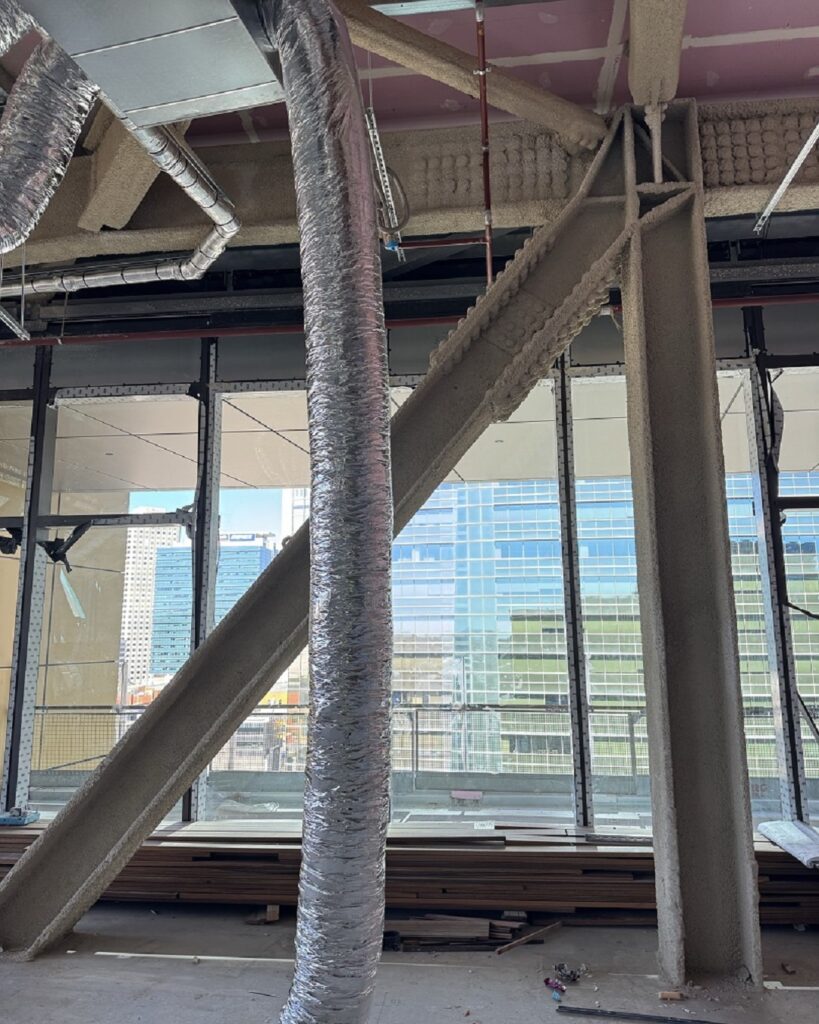

Progressive Materials specified Cafco® 300 as the primary fire protection system for the structural steel frame. As the most cost effective vermiculite spray available, it allowed the Property Fire Maintenance team to cover large areas quickly without compromising on fire resistance performance. Its spray applied format ensures consistent thickness and adhesion, even on complex steel profiles, delivering the required fire resistance ratings efficiently and reliably across the building.

For steel elements requiring a more robust solution, Promatect® 250 was specified. Its high-density calcium silicate composition provides excellent fire resistance while offering the added benefit of impact resistance and a quality finish, making it the right choice for exposed or high traffic areas where a spray applied product would not be appropriate.

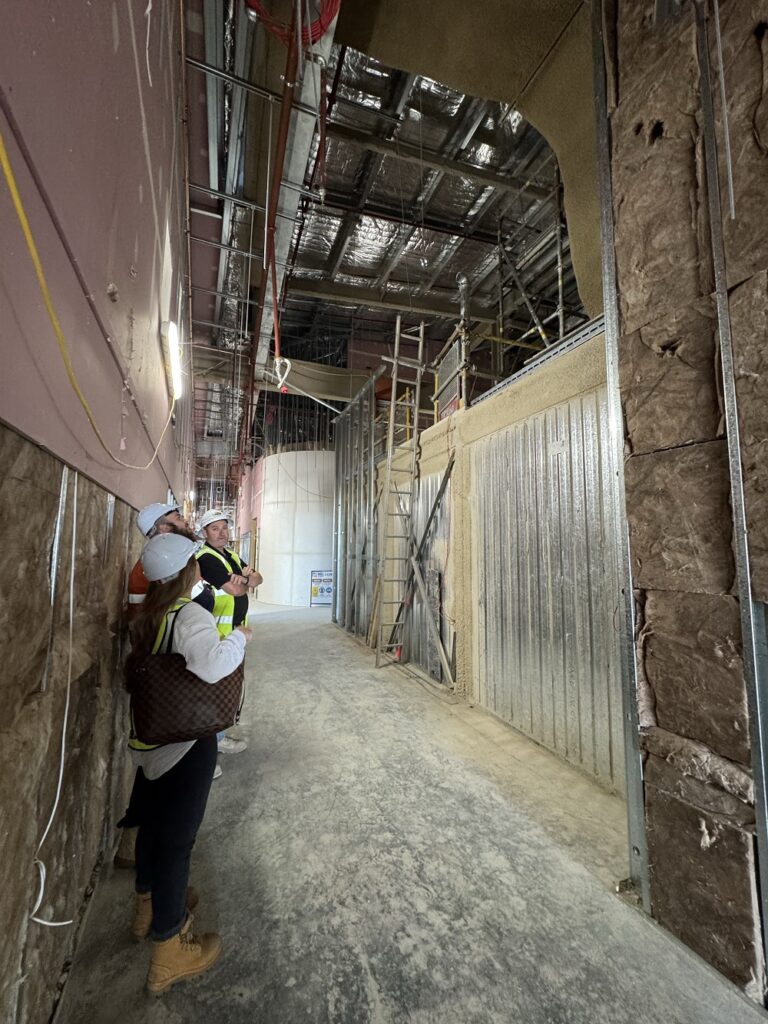

To ensure quality and compliance at every stage, the Progressive Materials team engaged directly with the ECU City site, gaining firsthand insight into the critical work taking place behind the scenes.

This hands on involvement, alongside the skilled work of the Property Fire Maintenance installation team, provided confidence that every system was installed to specification before being concealed within the completed structure.

A big shoutout to the Property Fire Maintenance team for their outstanding work across the ECU City building.
